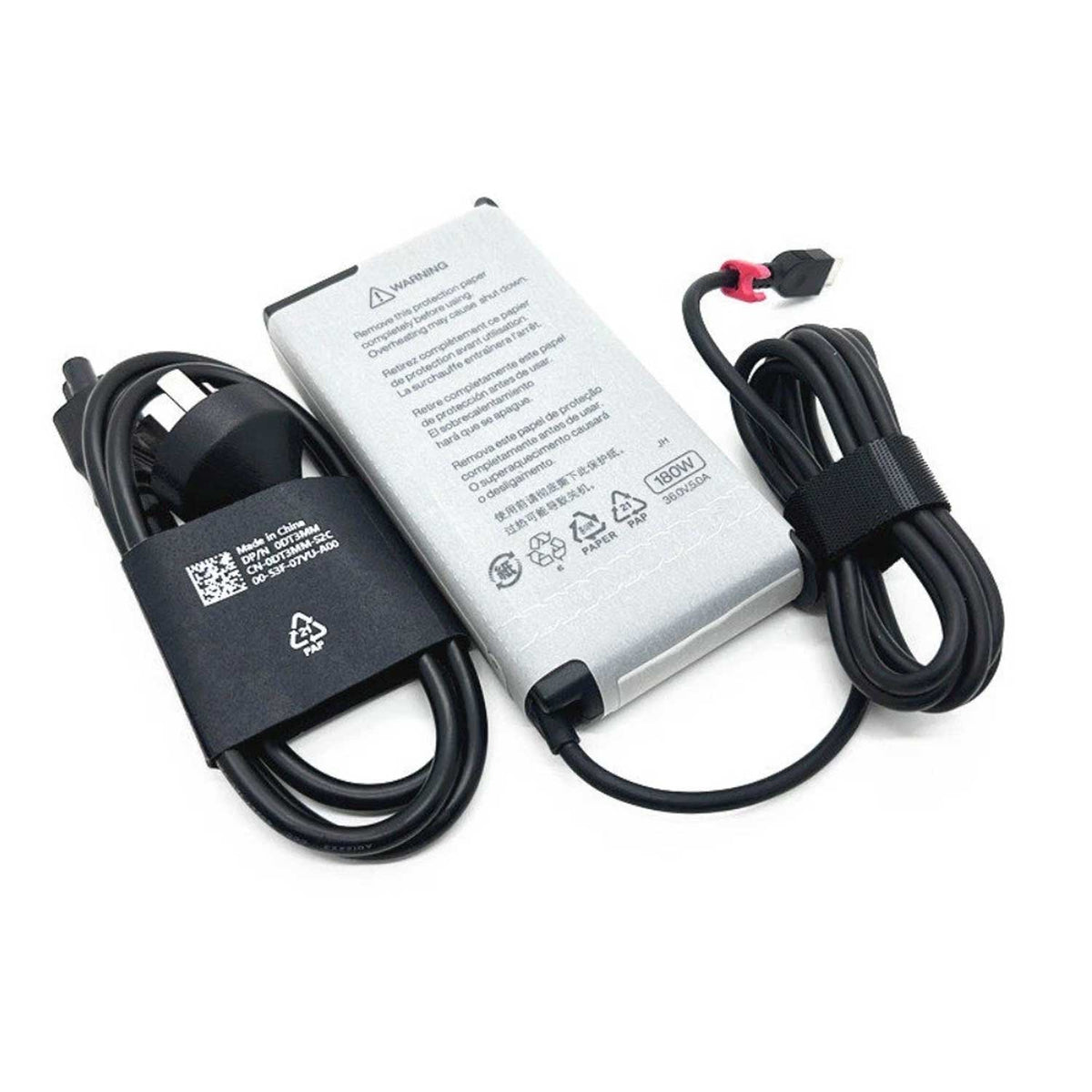

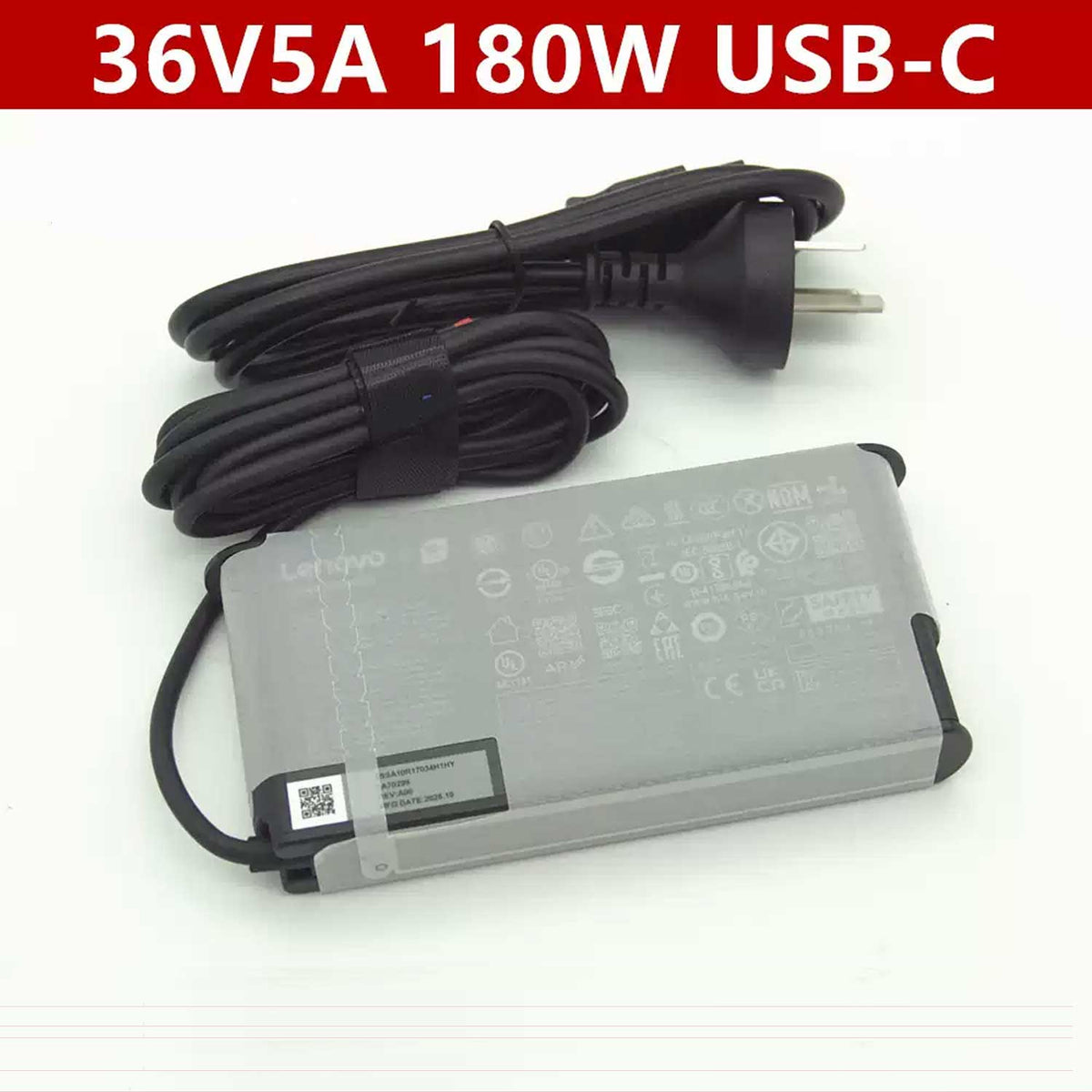

Lenovo ADL180YGSHC3A 180W USB-C Charger

180W 36V 5A USB-C Laptop Charger for Lenovo – ADL180YGSHC3A

This 180W USB-C / Type-C AC power adapter is suitable for use with your Lenovo laptop, as it meets the specifications of the Lenovo ADL180YGSHC3A adapter.

This USB-C laptop charger is suitable for use with different mains voltages found around the world since it has a wide input range of 100 to 240 volts AC. It offers a number of USB-C Power Delivery output settings, such as 36 volts 5 amperes / 180 watts, together with output voltages of 5 volts, 9 volts, 15 volts, 20 volts, and 28 volts.

The adapter is new and comes with a power cable that can be selected between US, EU, AU, or UK versions, so it serves as a convenient replacement charger for compatible Lenovo USB-C laptops.

Product Specifications

Output Specifications

The ADL180YGSHC3A supports the following output profiles:

• 5V ⎓ 3A

• 9V ⎓ 3A

• 15V ⎓ 3A

• 20V ⎓ 5A

• 28V ⎓ 5A

• 36V ⎓ 5A — 180W

The actual charging output is negotiated according to the requirements of the compatible USB-C device.

Compatible Part Number

This charger is designed to replace the following adapter part number:

• ADL180YGSHC3A

When replacing an existing Lenovo charger, compare the adapter model or part number with ADL180YGSHC3A before ordering.

Key Features

180W USB-C Power Adapter

With a maximum rated output of 180W, this adapter is designed for compatible Lenovo laptops and other devices that require the ADL180YGSHC3A power specification.

USB-C / Type-C Connector

The charger uses a USB-C / Type-C connector, providing a modern connection for compatible Lenovo laptops and USB-C charging devices.

Wide 100-240V Input

The 100-240V, 50-60Hz input range supports use with different electrical systems worldwide. Select the appropriate regional power cable for your location.

Multiple USB-C Output Profiles

The adapter supports several voltage and current profiles, including 5V, 9V, 15V, 20V, 28V, and 36V. This allows compatible devices to negotiate the appropriate charging level.

Safety Certifications

The power adapter is specified as CE, FCC, and RoHS certified, providing documented compliance with applicable safety and environmental requirements.

Multiple Power Cable Options

Choose the appropriate power cable for your region:

• US plug

• EU plug

• UK plug

• AU plug

Important Compatibility Check

USB-C does not automatically mean that every USB-C laptop is compatible with a 180W charger.

Before ordering, please verify:

1. Your original adapter part number is ADL180YGSHC3A or otherwise confirmed compatible.

2. Your Lenovo laptop supports the required USB-C charging specification.

3. The required charging power matches the adapter specifications.

4. The connector on your device is a compatible USB-C / Type-C charging port.

Matching the adapter part number and laptop charging requirements is more reliable than choosing a charger based only on the USB-C connector shape.

Package Contents

• 1 × ADL180YGSHC3A 180W USB-C Power Adapter

• 1 × Power Cable

Power cable options: US / EU / AU / UK.

FAQ

What is the Lenovo ADL180YGSHC3A charger?

The ADL180YGSHC3A is a 180W USB-C / Type-C AC power adapter specification for compatible Lenovo devices. Its maximum listed output is 36V 5A (180W).

Is ADL180YGSHC3A a USB-C charger?

Yes. The ADL180YGSHC3A uses a USB-C / Type-C connector.

How many watts is the ADL180YGSHC3A?

The maximum rated output is 180W, with a 36V 5A output profile.

What is the input voltage of this Lenovo 180W charger?

The adapter accepts 100-240V AC at 50-60Hz, making it suitable for different mains-voltage environments.

What output voltages does the ADL180YGSHC3A support?

The listed output profiles are 5V 3A, 9V 3A, 15V 3A, 20V 5A, 28V 5A, and 36V 5A.

Does the charger come with a power cable?

Yes. The package includes one power adapter and one power cable. US, EU, AU, and UK cable options are available.

How do I know if this charger is compatible with my Lenovo laptop?

Check the part number of your original charger and your laptop's USB-C charging requirements. For this listing, the key adapter part number is ADL180YGSHC3A.

Can I use this charger with another USB-C laptop?

Only if the other laptop supports the required USB-C charging specifications and power profile. A USB-C connector alone does not guarantee compatibility.
