Before You Order an HP Battery: The 4-Way Model Number Check

1. Why the Battery Model Number Matters Before You Buy

Here's a scenario I see all the time. Someone types "HP Pavilion 15 battery" into Google, clicks the first result, and buys it. Two weeks later, the battery arrives. It doesn't fit.

Same laptop series. Wrong battery.

HP doesn't use one battery per laptop series. Within the Pavilion 15 line alone, you'll find HT03XL, HW03XL, LK03XL, BP02XL, and several others. Each carries different dimensions, connectors, voltages, and screw patterns. The same goes for EliteBook, Envy, OMEN, and every other HP series.

The battery model number. Sometimes called the part number or spare number, is the only identifier that determines compatibility. It's a short code printed on every genuine HP battery label. When you search for a replacement using this code, you eliminate the guesswork.

2. Method 1: Read the Label on the Battery Itself

This is the most reliable method. The battery label is your single source of truth. It tells you exactly what HP installed at the factory.

For Removable Batteries

Older Pavilion, ProBook, and EliteBook models carry externally removable batteries. You can check the label in under a minute:

1. Power down completely. Shut down the laptop and unplug the AC adapter.
2. Flip it over. Place the laptop bottom-side up on a flat surface.
3. Release the latch. Find the battery release slider — usually near the edge. Slide it to the unlock position and hold it there.
4. Lift the battery out. The battery should pop up slightly. Lift it away from the chassis.
5. Find the model number. Look at the white or black label on the battery body. The model number is typically printed near the center, alongside the voltage (e.g., 11.4V) and capacity (e.g., 45Wh).

For Built-in (Non-Removable) Batteries

Most modern HP laptops — especially Pavilion x360, Envy, Spectre, and recent EliteBook models, have internal batteries. You can't pop them out without removing the bottom cover.

Not comfortable opening the laptop? Skip to Method 2 (Windows tools) or Method 3 (HP Support Assistant). Neither requires disassembly.

But if you're already planning to replace the battery yourself, you'll need to open it anyway. Here's what to do:

1. Remove the bottom cover. Unscrew the Phillips screws on the bottom panel. On many HP models, some screws hide under the rubber feet. Pry them up gently with a plastic spudger.
2. Disconnect the battery first. Before touching anything else, locate the battery connector on the motherboard and gently disconnect it. Pull by the plastic tab — never by the wires.
3. Read the label. The battery label is usually visible without removing the battery itself. Look for the model number printed on the top or side of the pack.

📸 Quick tip: Use your phone camera in macro mode to take a clear photo of the label. Zoom in on the photo, it's easier than squinting at tiny print. You'll have a permanent reference when ordering.

3. Method 2: Use Windows Built-in Tools

If you'd rather not open your laptop, Windows has three built-in ways to pull the battery model number. All three are free and take less than a minute each.

Option A: WMIC Command (Fastest)

This pulls the battery name directly from the BIOS. It works on most HP laptops, though some models only return a generic identifier.

1. Press Win + R, type cmd, and press Enter.
2. In the Command Prompt window, type exactly:

wmic path Win32_Battery get Name, Manufacturer, Status

3. Press Enter. Look at the Name field, that's your battery model.

If the output shows something like HT03XL or HSTNN-LB6M, that's exactly what you need. If it shows ACPI Battery or a generic string, try Option B instead.

Option B: Battery Report (Most Detailed)

The battery report gives you the model number. It also shows design capacity, full charge capacity, and cycle count. Useful if you also want to check whether your battery is worn out.

1. Open Command Prompt as administrator (right-click Start → Command Prompt (Admin) or Windows PowerShell (Admin)).
2. Type:

powercfg /batteryreport

3. Windows generates an HTML file. The output tells you where it saved the file, usually C:\Users\[YourName]\battery-report.html.
4. Open that file in any browser. Look under "Installed batteries", the Name field contains your battery model.

Option C: Device Manager (Fallback)

This method shows hardware IDs, not always a clean model number. Use it when the other two don't work.

1. Right-click Start → Device Manager.
2. Expand "Batteries".
3. Right-click "Microsoft ACPI-Compliant Control Method Battery" → Properties → Details tab.
4. In the dropdown, select "Hardware IDs". The codes shown may contain the battery model as part of the string.

The truth is, Device Manager rarely gives a clean, readable model number on its own. I use it only as a last resort before going to Method 3.

4. Method 3: HP Support Assistant (Official Tool)

If your HP laptop still has HP Support Assistant installed, this is the easiest software method. It reads the battery data directly from the laptop's firmware, no command lines, no manual label reading.

1. Open HP Support Assistant from the Start menu. If you don't have it, download it free from HP's support site.
2. Go to My PC → Diagnostics & Tools → HP Battery Check.
3. Wait about 30 seconds while it scans. The results screen shows:
   • Battery part number, this is your model number
   • Health percentage, how much of the original capacity remains
   • Cycle count, how many charge cycles the battery has been through
   • Design capacity vs. current capacity, side-by-side comparison
4. You can export the results as a PDF for your records.

In my experience, HP Support Assistant gives the cleanest, most reliable software-based model number. If your laptop has it installed, start here before trying the command-line methods.

5. Method 4: Look Up Your Serial Number on HP PartSurfer

This method doesn't read the installed battery at all. Instead, it looks up which battery your laptop originally shipped with from HP's parts database.

It's useful in three cases. The label wore off. Software methods fail. Or you want an official HP source to double-check.

1. Find your laptop's serial number (S/N). It's on a label on the bottom of the laptop, usually a 10-character code. On some models, you can also press Fn + Esc to see it on-screen.
2. Go to partsurfer.hp.com.
3. Enter your serial number and click Search.
4. Navigate to the Battery or Power category. HP lists the official spare part numbers for every component.

One caveat: this shows what HP shipped with the laptop. A previous owner may have swapped in a different compatible pack. Then the PartSurfer result won't match what's installed. Cross-check with at least one other method when possible.

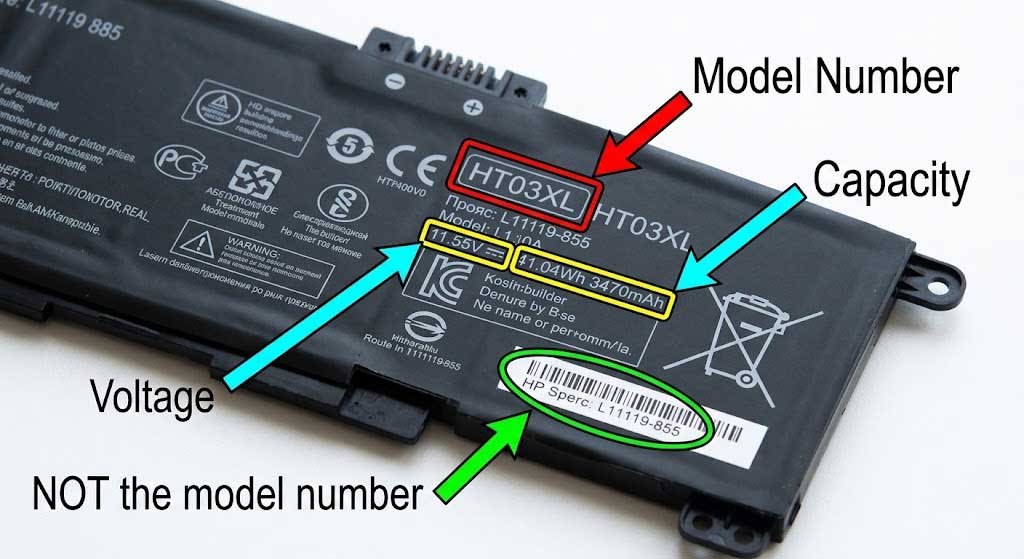

6. How to Read the Label: Model Number vs. Everything Else

HP battery labels pack a lot of information into a small space. It's easy to grab the wrong code. Here's what you're looking at:

A common mistake is copying the serial number instead of the model number. The serial number is unique to your specific battery unit, it won't help anyone find a replacement. The model number (like HT03XL) spans thousands of compatible batteries.

7. The 6 Mistakes That Cause Wrong Battery Returns

• Ordering by laptop model name: "HP Pavilion 15 battery" returns multiple incompatible results. Always use the battery model number from the label.
• Mixing up voltage: An 11.4V battery and a 14.8V battery are not interchangeable, even if they physically fit. The voltage must match exactly.
• Copying the serial number: The S/N on the label is unique to that specific unit. It won't help you find a compatible replacement. Look for the model code instead.
• Trusting third-party "scanner" tools: Some free battery-scanning utilities only report generic driver names like "ACPI Battery." Stick to HP Support Assistant or the Windows command-line methods above.
• Skipping the cross-check: I've learned that no single method is 100% reliable on every HP model. Use at least two methods, ideally the physical label plus a software method, and make sure they match.
• Buying the cheapest "compatible" listing: Claims of 40-model compatibility plus a generic photo are a warning, not a feature. Real battery listings name one specific model code and show the actual label.

8. You Have the Model Number, Now What?

Once you have a code like HT03XL, LK03XL, or SR04XL in hand, you're past the hardest part. This code is your ticket to finding a battery that actually fits.

When searching for a replacement, keep these three things in mind:

• Match the model number exactly. HT03XL and HW03XL may look similar. They aren't the same battery.
• Match the voltage. If your original is 11.55V, the replacement should be 11.55V, not 10.8V, not 14.8V.
• Check the warranty. A 12-month replacement warranty is the industry standard for quality aftermarket batteries. If a listing doesn't state the warranty period, ask before buying.

Frequently Asked Questions

References & Sources

• HP Official Support, HP Support Assistant download and battery diagnostic documentation
• HP PartSurfer, Official HP parts lookup by serial number for identifying factory battery part numbers
• Microsoft Docs, powercfg command-line options, Official documentation for the Windows battery report tool
