iRobot Roomba J9+ Battery Replacement ABL-F - Also Compatible with J8+, J7+, i8+, i7+ Models
iRobot Roomba J9+ Battery Replacement ABL-F - Also Compatible with J8+, J7+, i8+, i7+ Models
Couldn't load pickup availability

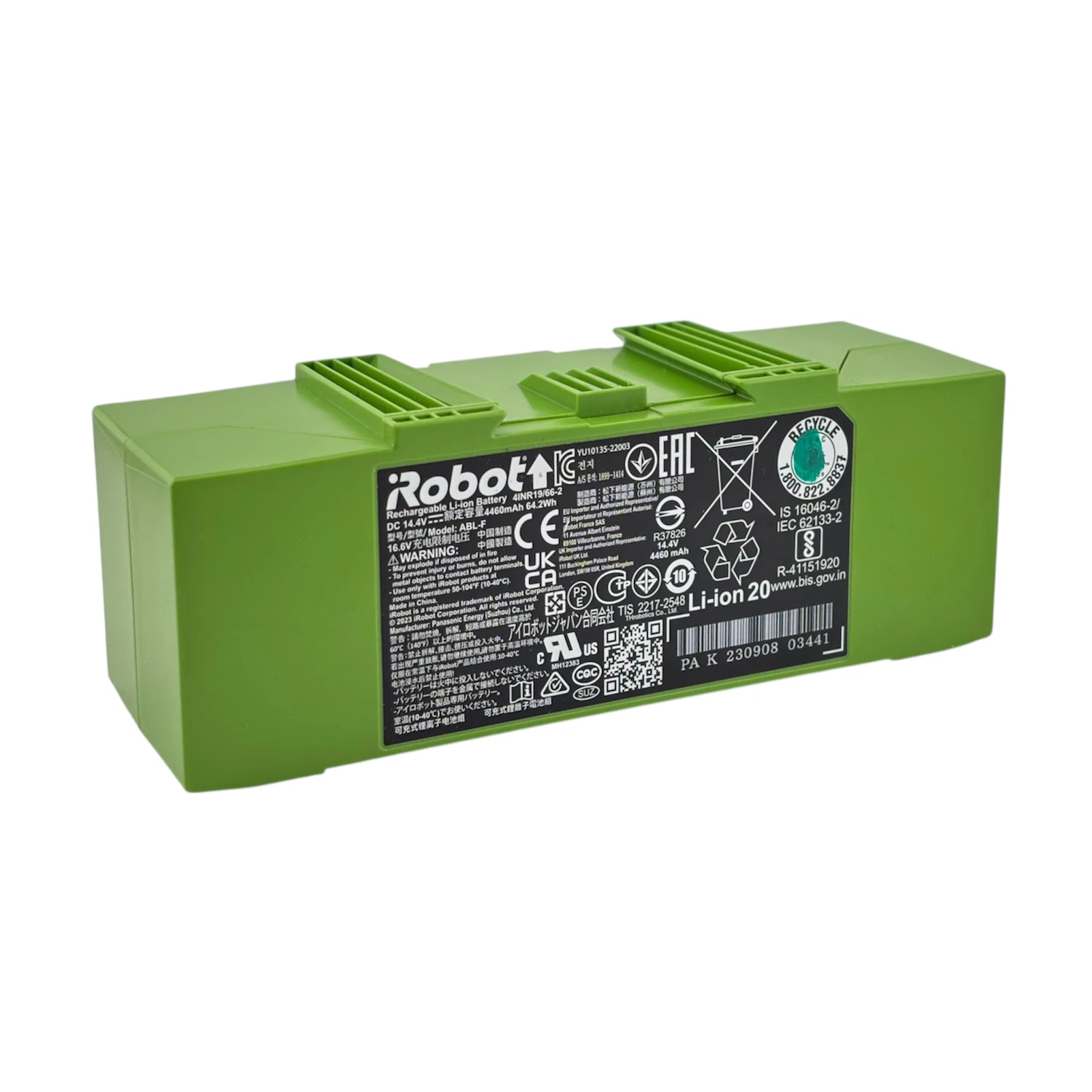

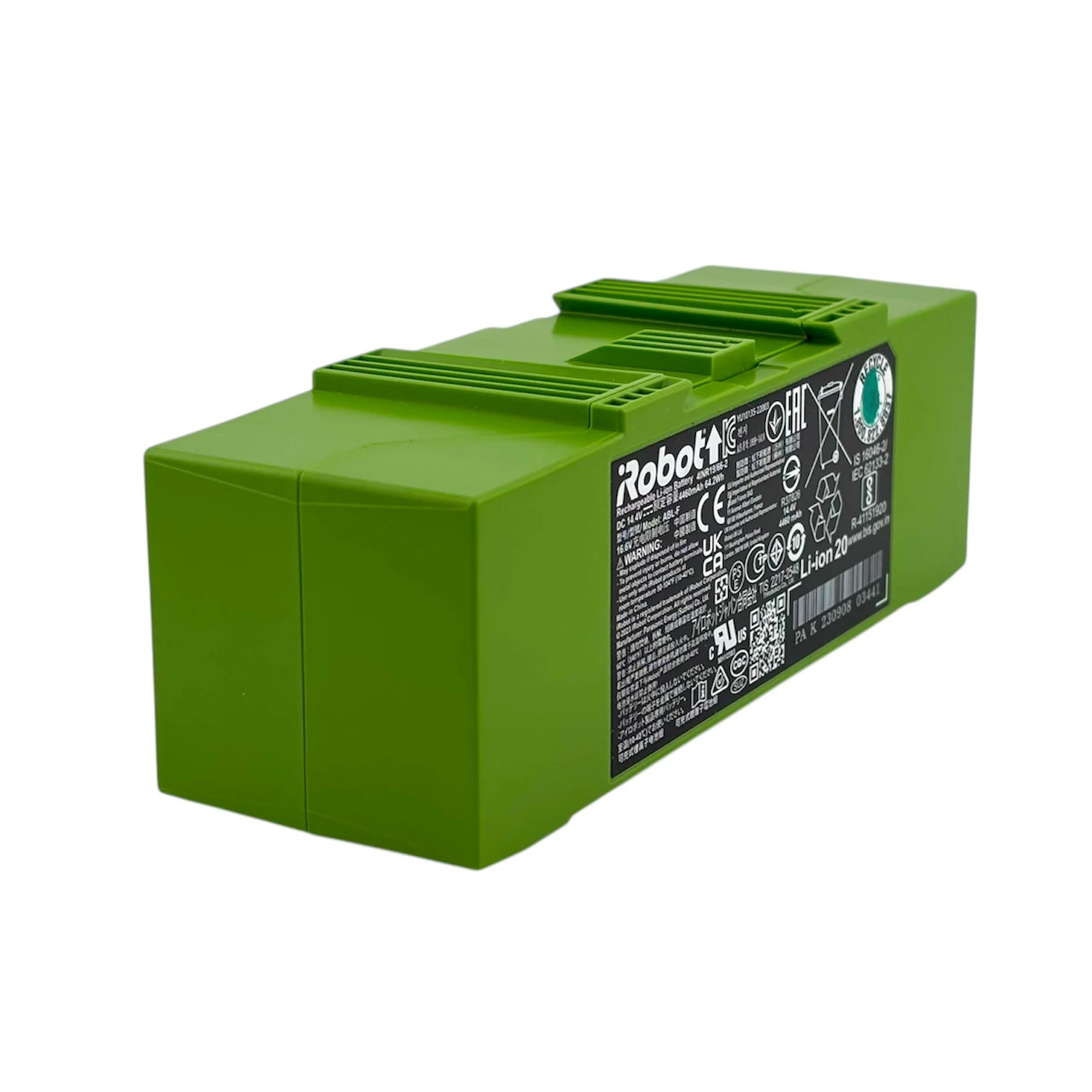

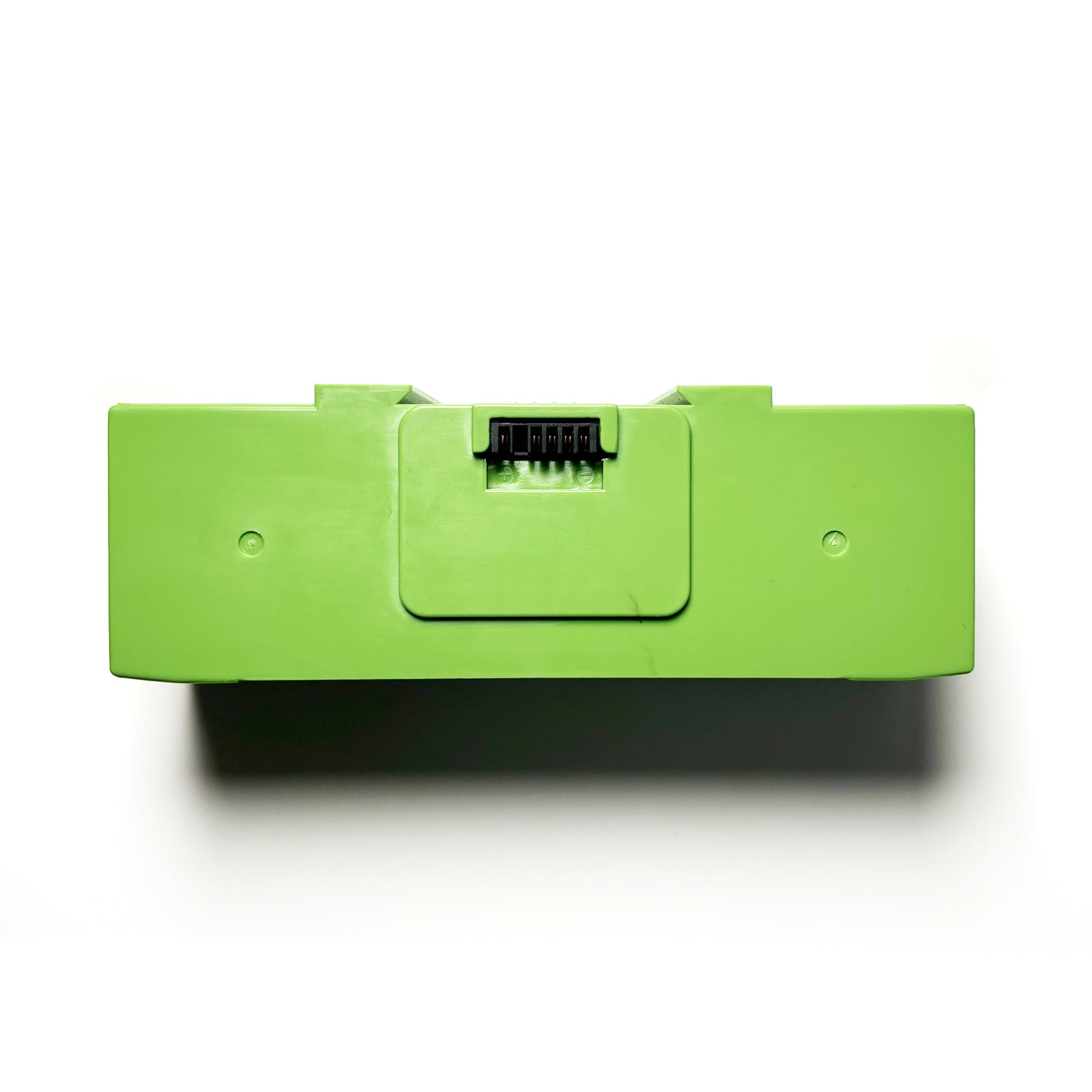

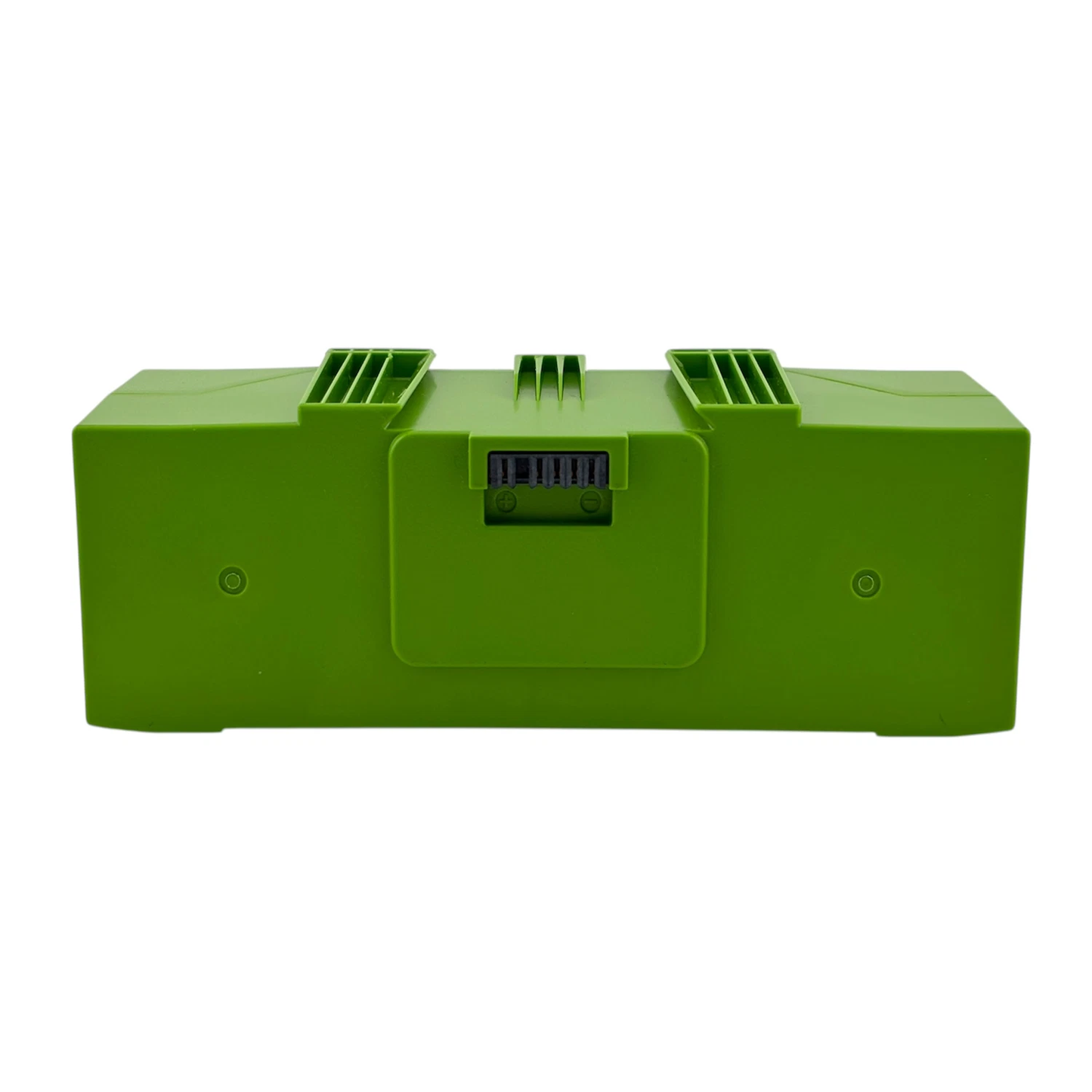

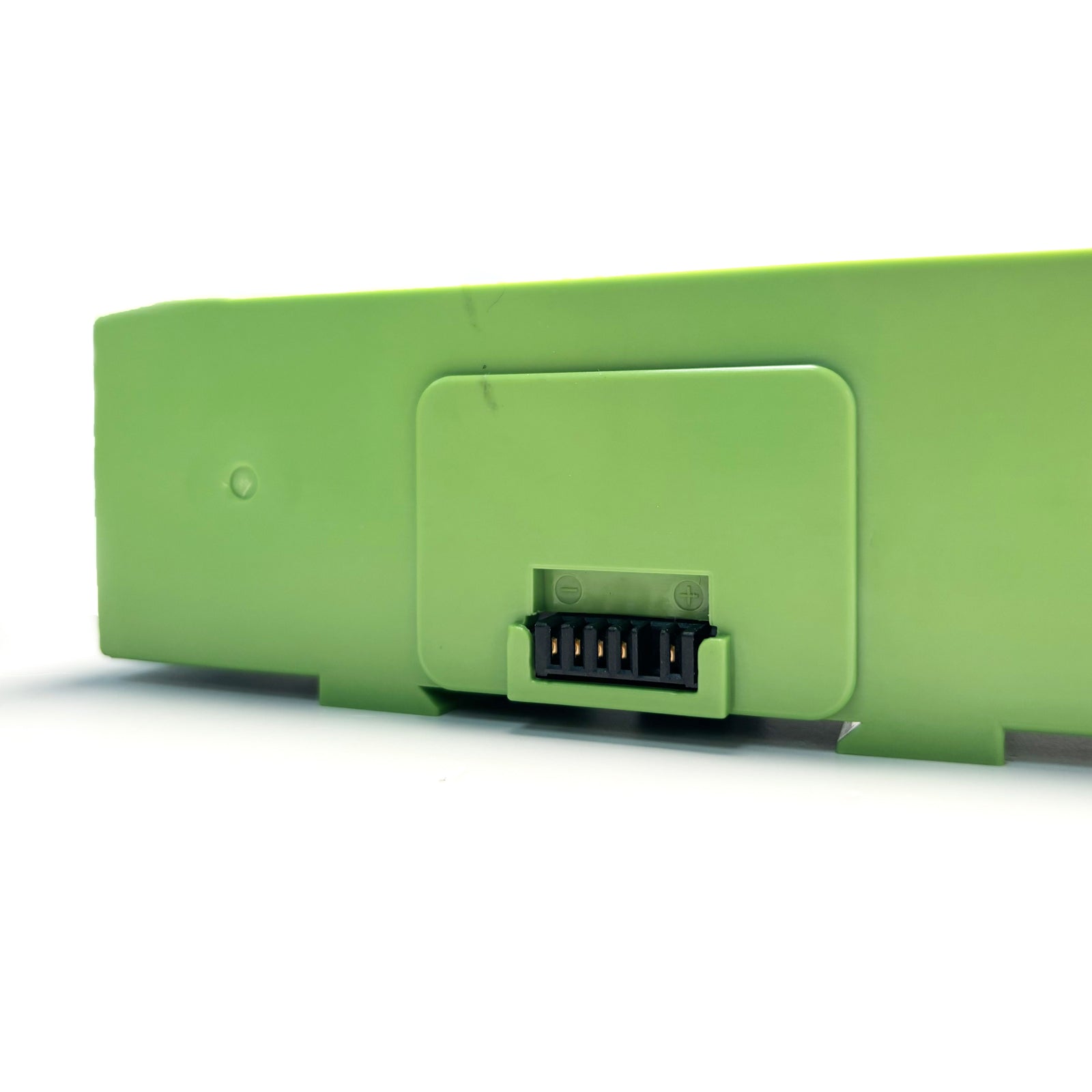

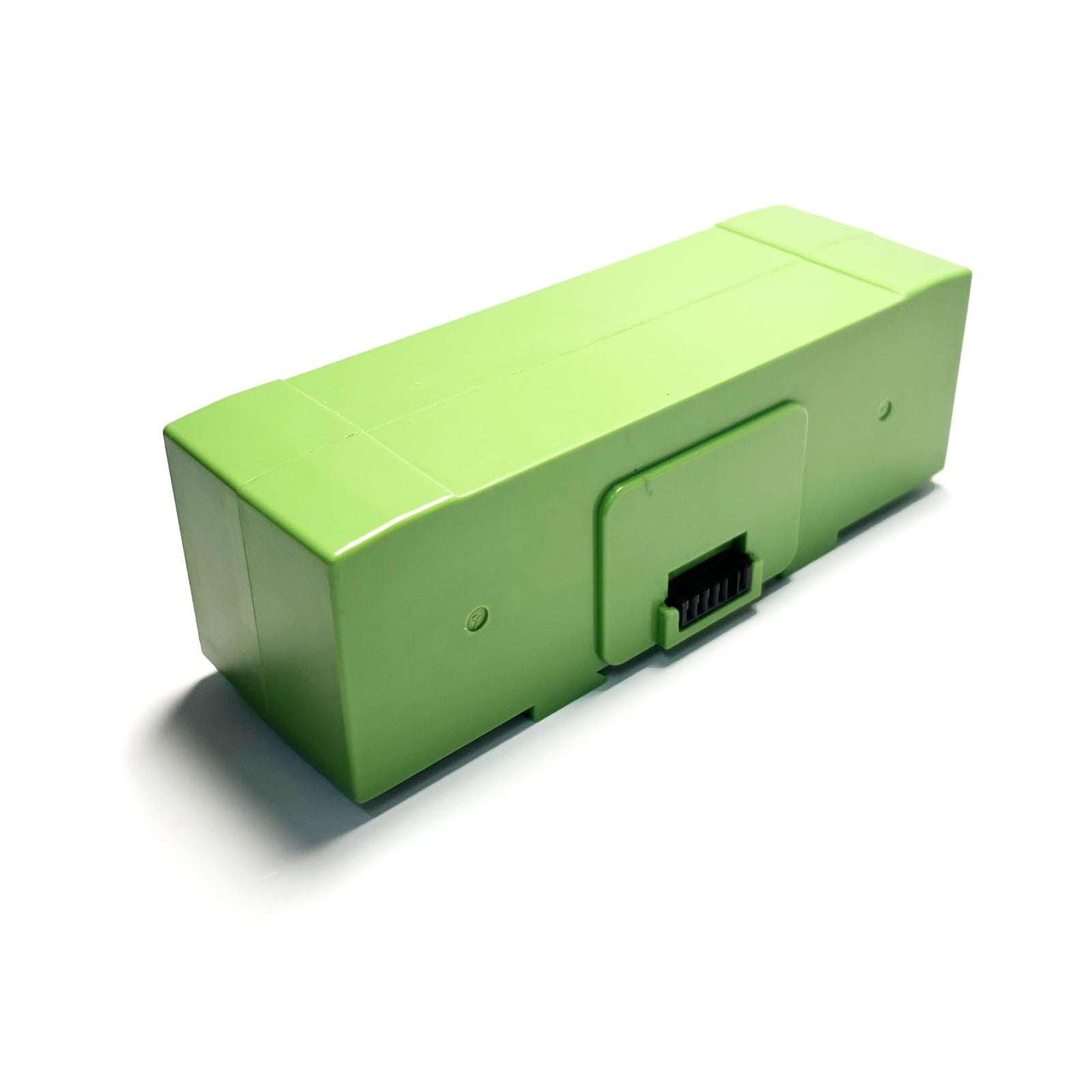

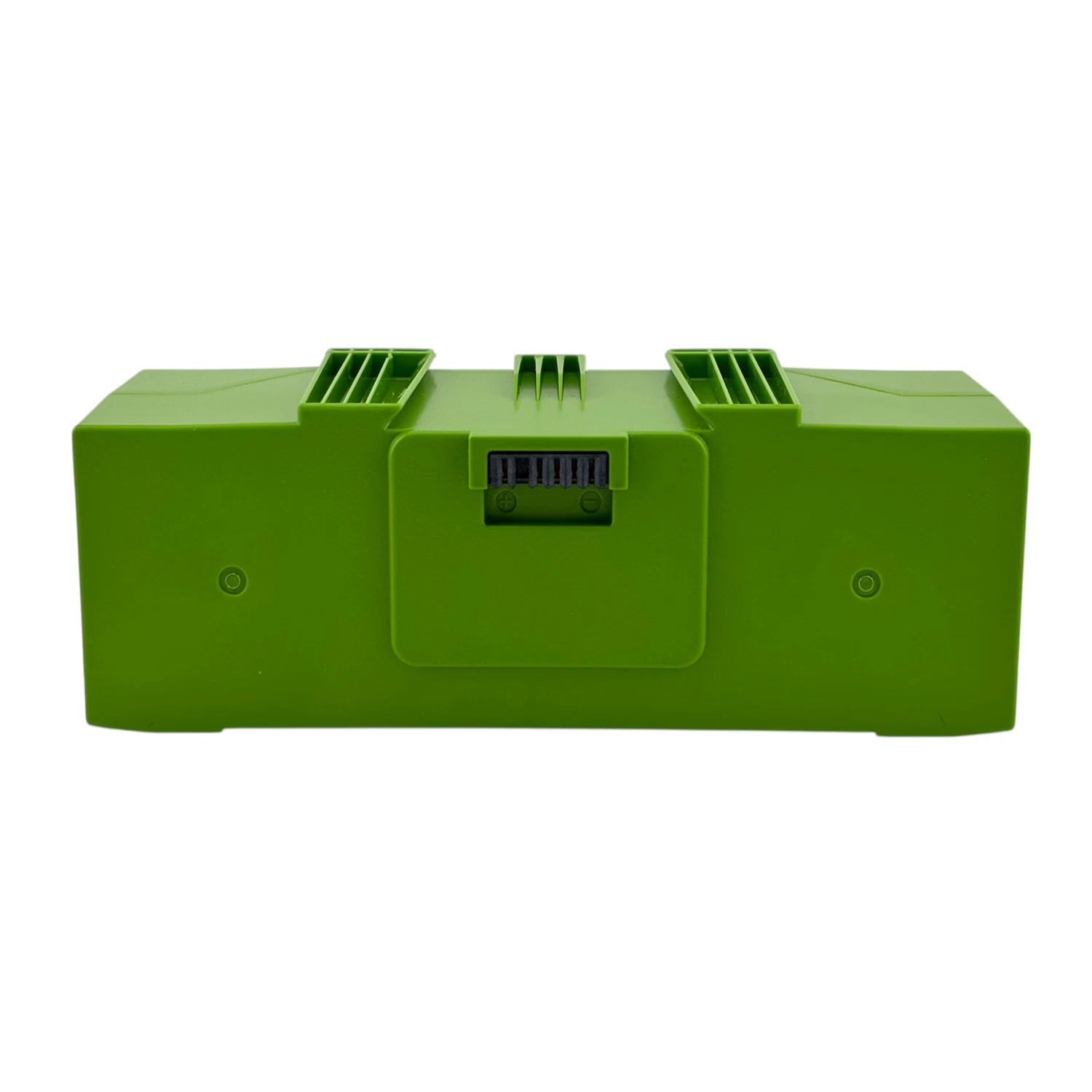

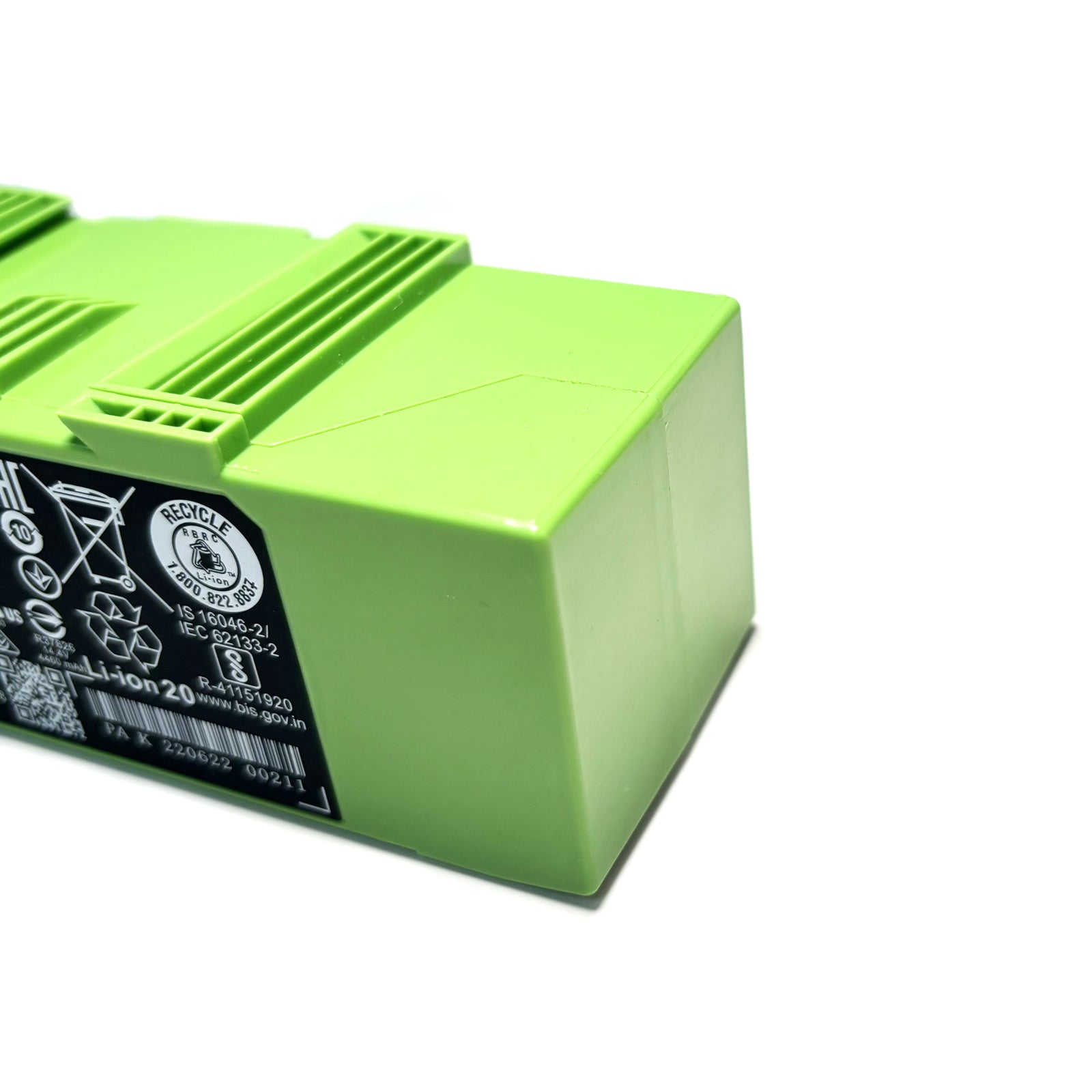

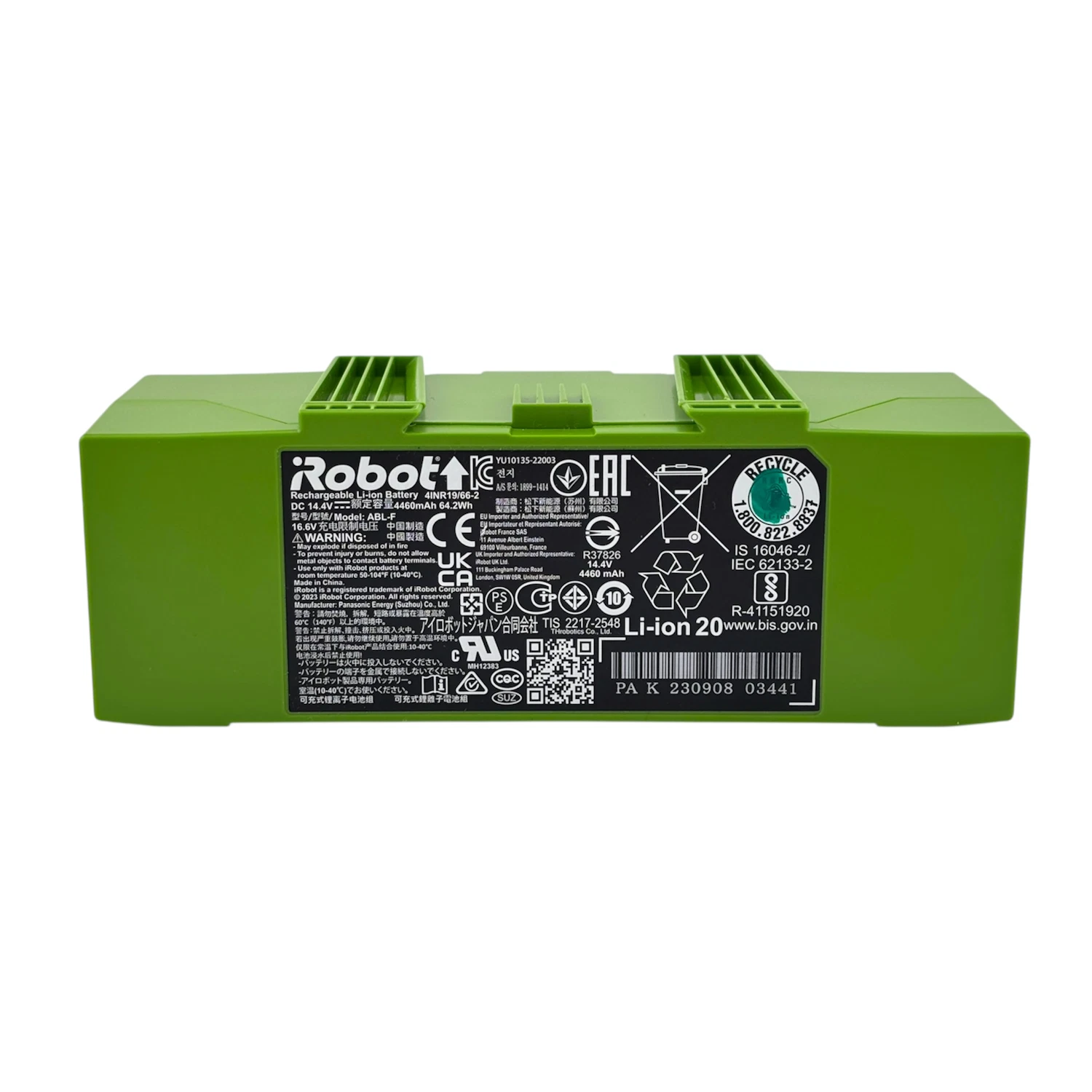

Original ABL-F Battery for iRobot Roomba J Series and i Series — 14.4V 4460mAh
Restore full 120-minute runtime and smart navigation to your Roomba J9+, J8+, J7+, J6+, J5+, i8+, i7+, i6, i4, i3, i1, e5, and e6 with this genuine iRobot ABL-F lithium-ion replacement battery.
Product Overview
This is the genuine iRobot ABL-F battery — the exact OEM power cell engineered and certified by iRobot for your Roomba J Series (J9+, J8+, J7+, J6+, J5+) and i Series (i8+, i7+, i6, i4, i3, i1) robot vacuums. Delivering 14.4V output and a 4460mAh capacity (64.2Wh), it restores up to 120 minutes of continuous cleaning on a single charge.
Unlike third-party batteries that can cause Error 19 charging failures or disrupt firmware communication, this authentic ABL-F battery integrates seamlessly with your Roomba's operating system. It provides accurate battery status in the iRobot HOME app, supports optimized charging cycles, and preserves every smart feature you rely on — Imprint Smart Mapping, Keep Out Zones, room-specific cleaning, and detailed post-clean reports.
Built with proprietary high-density lithium-ion cells (4INR19/66-2 configuration) and a comprehensive Integrated Protection Module, the ABL-F guards against over-voltage, over-current, deep discharge, and temperature extremes. Installation requires only a Phillips-head screwdriver and 5 minutes of your time.
Compatible iRobot Roomba Models
This genuine ABL-F battery fits every Roomba in the J Series and i Series lineups, plus select e Series and Combo models. Check your Roomba model number on the label underneath the robot to confirm.
Roomba J Series (Flagship Smart Navigation)
- J9+ / J9
- J8+ / J8
- J7+ / J7
- J6+ / J6
- J5+ / Combo j5
Roomba i Series (Advanced Mapping)
- i8+ / i8 (i8550)
- i7+ / i7 (i7550, i7150, i7156)
- i6+ / i6 (i6550, i6150)
- i4+ / i4 (i4550, i4552, i4150)
- i3+ / i3 (i3550, i3556, i3558, i3150, i3158)
- i2 (i2152)
- i1+ / i1 (i1154, i1158)
Roomba e Series & Combo
- e6 (e6112, e6134, e6198)
- e5 (e5134, e5150, e5158)
- Combo i5+ (i557020)
Key Features & Specifications
| Specification | Detail |
|---|---|
| Model | ABL-F |
| Output Voltage | 14.4 Volts (V) DC — exact match for Roomba J & i Series power requirements |
| Capacity | 4460mAh / 64.2 Watt-hours (Wh) |
| Battery Type | Lithium-Ion (Li-ion) — rechargeable |
| Cell Configuration | 4INR19/66-2 — 4-cell high-density Li-ion pack |
| Condition | Genuine — Brand New, A-grade cells, 100% compatible |
| Protection Module | Integrated safeguards against over-voltage, over-current, deep discharge, and temperature extremes |
| Cycle Life | Rated for 500+ charge/discharge cycles (2-3 years of regular use) |
| Runtime Per Charge | Up to 90-120 minutes (varies by floor type and suction mode) |
| Charging Time | Approximately 2-3 hours for a full charge (using original iRobot dock or Clean Base) |
| Installation | 5-minute tool-assisted swap — requires Phillips-head screwdriver for bottom plate |
Why Choose the Genuine iRobot ABL-F Battery
100% Original iRobot Quality
This is the authentic OEM ABL-F battery — not a third-party copy. It communicates perfectly with your Roomba's operating system, delivering accurate battery readings in the iRobot HOME app with zero compatibility errors.
Extended 120-Minute Runtime
The 4460mAh high-density pack provides up to 2 hours of cleaning per charge. That is roughly 2 to 3 times the runtime of the original 1800mAh ABL-D1 battery, covering larger homes on a single cycle.
Advanced Safety Protection
The Integrated Protection Module continuously monitors voltage, current, discharge depth, and temperature. It automatically prevents overcharge damage, overheating, and deep discharge that can permanently reduce battery life.
Quick 5-Minute Installation
No special tools or technical skills needed. Flip the Roomba over, remove the bottom plate screws, unclip the old battery, click in the new ABL-F, and reassemble. Your Roomba is ready to charge and clean like new.
Precise 14.4V Power Delivery
Stable voltage output ensures consistent performance for the high-torque cleaning head, dual brushrolls, and the full sensor suite. No suction fade as the battery drains — full power from start to finish.
Full Smart Feature Support
Maintains every smart feature your Roomba offers: Imprint Smart Mapping, Keep Out Zones, room-specific scheduling, Pet Owner Lock, and detailed post-clean reports in the iRobot HOME app.
Frequently Asked Questions
Q: How long does the ABL-F battery last on a single charge?
A: With a full charge, this genuine ABL-F 4460mAh battery provides approximately 90 to 120 minutes of cleaning runtime. Actual runtime depends on your floor type, suction mode, and Roomba model. Hard floors in standard mode achieve the longest runtime. High-pile carpet and turbo mode reduce runtime. This matches or exceeds the original iRobot battery performance.
Q: How do I know when my Roomba battery needs replacing?
A: Common signs your Roomba battery needs replacement include: runtime drops below 40 minutes on a full charge, the robot repeatedly fails to return to the Clean Base before dying, the battery charges to full in under 30 minutes, the iRobot HOME app shows a persistent battery error, or the Roomba starts a cleaning cycle and shuts down shortly after. iRobot rates the original battery for about 500 charge cycles or 2 to 3 years of regular use before capacity degrades noticeably.
Q: How do I replace the battery in my iRobot Roomba?
A: Replacing the ABL-F battery takes about 5 minutes with a Phillips-head screwdriver. Turn the Roomba off and flip it upside down. Remove the edge-sweeping brush by unscrewing its single captive screw. Remove the five screws on the bottom plate and lift it off. Unclip the old battery by bending the plastic latch, lift it out, and disconnect the plug. Connect the new ABL-F battery, press it into the compartment until it clicks, then reassemble the bottom plate and side brush. Place the Roomba on the charging dock and charge fully before first use.
Q: What is the difference between ABL-F, ABL-D1, and ABL-D2 batteries?
A: All three are fully interchangeable and share the same 14.4V output and physical form factor. ABL-D1 is the first-generation OEM part (code 4INR19/65), ABL-D2 is a minor second-generation revision (code 4INR19/66), and ABL-F is the latest revision (code 4INR19/66-2) with higher energy density. The ABL-F typically offers 4460mAh capacity versus approximately 1800 to 2210mAh in earlier versions, providing roughly 2 to 3 times the runtime. All three fit the same Roomba models and use the same charging dock. This ABL-F replaces all earlier part numbers.
Q: Which Roomba models are NOT compatible with the ABL-F battery?
A: This ABL-F battery is designed for Roomba J Series (J9+, J8+, J7+, J6+, J5+), i Series (i8+, i7+, i6, i4, i3, i1), e Series (e5, e6), and the Combo i5+. It is NOT compatible with the newer Roomba Combo series with mopping (j9 Combo, j7 Combo, j5 Combo), Roomba s9/s9+ series, Roomba 900 series, Roomba 800/700/600/500 series, or Braava mopping robots. It also does not fit Roomba models that use the earlier 1800mAh narrow-form battery. Always check your Roomba model number on the label underneath the robot before ordering.
Q: How long does it take to fully charge the ABL-F battery?
A: A full charge takes approximately 2 to 3 hours when using the original iRobot charging dock or Clean Base. Charge the new ABL-F battery fully before first use to calibrate the battery meter in the iRobot HOME app and achieve maximum initial runtime. If the Roomba does not power on after installation, place it directly on the charging dock for about 20 seconds to initialize the battery connection.
Q: Will this genuine ABL-F battery trigger error codes on my Roomba?
A: No. As a genuine iRobot ABL-F battery with original equipment specifications, this battery communicates correctly with your Roomba's operating system. It delivers accurate battery status in the iRobot HOME app, supports optimized charging cycles, and maintains full smart feature access including Imprint Smart Mapping and cleaning reports. Error codes like Error 19 are typically caused by third-party batteries with incompatible chip firmware, not by genuine iRobot batteries. If you experience any error after installation, try removing the battery for 10 minutes, then reinstalling and charging fully.
What's Included
- 1 x Genuine iRobot ABL-F Battery (14.4V, 4460mAh / 64.2Wh)
- 1 x Installation Guide
Summary
| Model | ABL-F |
| Voltage | 14.4V |
| Capacity | 4460mAh / 64.2Wh |
| Battery Type | Lithium-Ion (Li-ion) |
| Condition | Genuine, Brand New, A-grade cells |
| Compatible With | Roomba J9+, J8+, J7+, J6+, J5+, i8+, i7+, i6, i4, i3, i1, e5, e6, Combo i5+ and all Clean Base models |
