ABL-D1 High-Capacity Battery for iRobot Roomba i, e & J Series — 14.4V 26Wh
Restore full cleaning autonomy to your Roomba i3, i4, i7, i8, e5, e6, J5, J6, J7 and more with this high-capacity 26Wh ABL-D1 replacement lithium-ion battery. Plug-and-play install, Intelligent Protection Circuit built in.
Product Overview
This high-capacity ABL-D1 replacement battery brings your iRobot Roomba back to full cleaning power. Delivering 14.4V output with a 26Wh capacity (approximately 2500mAh), it provides up to 90 minutes of runtime per charge — roughly 40 percent more cleaning time than the original 1800mAh (26Wh) OEM battery.
The ABL-D1 fits a broad range of Roomba models: i Series (i3, i4, i6, i7, i8 including all Plus variants), e Series (e5, e6), and J Series (J5, J6, J7 including Plus variants). One battery covers nearly the entire modern Roomba lineup.
Built with premium lithium-ion cells and a built-in Intelligent Protection Circuit (IPC), the battery continuously guards against overcharging, over-discharging, short circuits, and overheating. Installation takes about 5 minutes with a Phillips-head screwdriver — no technical skills needed. If the robot does not power on after the swap, place it on the charging dock for about 20 seconds to initialize.
Compatible iRobot Roomba Models
This ABL-D1 26Wh battery fits a wide range of Roomba models across three product families. Verify your model number on the label underneath your robot before ordering.
Roomba i Series
- i8 / i8+ (i8550)
- i7 / i7+ (i7150, i7550)
- i6 / i6+ (i6150, i6550)
- i4 / i4+ (i4150, i4550, i4552)
- i3 / i3+ (i3150, i3550)
- i2 (i2152)
- i1 / i1+ (i1154, i1158)
Roomba e Series
- e6 (e6112, e6134, e6198)
- e5 (e5134, e5150, e5158)
Roomba J Series
- J7 / J7+ (j7150, j7550)
- J6 / J6+
- J5 / J5+
Key Features & Specifications
| Specification | Detail |
|---|---|
| Battery Model | ABL-D1 |
| Output Voltage | 14.4 Volts (V) — exact match for Roomba i, e, and J Series power requirements |
| Capacity | 26 Watt-hours (Wh) — approximately 2500mAh |
| Battery Type | Lithium-Ion (Li-Ion) — high-grade certified cells |
| Protection Circuit | Built-in Intelligent Protection Circuit (IPC) — overcharge, over-discharge, short-circuit, and overheat protection |
| Cycle Life | Rated for 500+ charge/discharge cycles |
| Runtime Per Charge | Up to 90 minutes (varies by floor type, model, and suction mode) |
| Charging Time | Approximately 2-3 hours for a full charge |
| Installation | 5-minute tool-assisted swap — requires Phillips-head screwdriver for bottom plate |
| Cell Configuration | 4INR19/65 — 4-cell Li-Ion pack |
Why Choose This ABL-D1 26Wh Battery
Unmatched Broad Compatibility
One battery fits nearly the entire modern Roomba lineup: i Series (i1-i8), e Series (e5, e6), and J Series (J5, J6, J7). A single SKU covers multiple robots in your home or facility.
40% More Runtime Than OEM
The original ABL-D1 OEM battery is approximately 26Wh (1800mAh). This 26Wh upgrade delivers about 40 percent more cleaning time — up to 90 minutes on a single charge.
Intelligent Protection Circuit (IPC)
Continuously monitors and guards against overcharging, over-discharging, short circuits, and overheating. Your Roomba and your home stay safe during every charge and cleaning cycle.
Premium Li-Ion Cells
High-grade certified lithium-ion cells provide higher energy density, longer cycle life, and better performance consistency compared to standard aftermarket batteries. Rated for 500+ cycles.
Quick 5-Minute Installation
Phillips-head screwdriver, 5 screws, one latch. Remove the bottom plate, unclip the old battery, click in the new ABL-D1, reassemble. Place on the dock and charge fully before first use.
Exceptional Value
Delivers equal or better performance than the OEM battery at a significantly lower cost. The most cost-effective way to restore your Roomba's original cleaning endurance and protect your investment.
Detailed Model Compatibility
| Roomba Series | Specific Model Numbers |
|---|---|
| i8 Series | i8, i8+, i8 Plus: 8550, i8550, i855020 |
| i7 Series | i7, i7+, i7 Plus: 7150, i7150, 7156, i7156, 7158, i7158, 7550, i7550, 7556, i7556, 7558, i7558 |
| i4 Series | i4, i4+, i4 Plus: 4150, i4150, 4550, i4550, 4552 |
| i3 Series | i3, i3+: 3150, i3150, 3158, i3158, 3550, i3550, 3556, i3556, 3558, i3558, i3152, i3154, i3552, i3554 |
| e5 Series | e5: 5150, e5150, e5152, e5154, e5158 |
| e6 Series | e6: 6198, e6198, e619820 |
| J7 Series | J7, J7+, J7 Plus: j7550, j755020, j7150, j715020 |
Frequently Asked Questions
Q: How long does the ABL-D1 battery last on a single charge?
A: With a full charge, this 26Wh ABL-D1 replacement battery provides approximately 90 minutes of cleaning runtime. Actual runtime depends on your Roomba model, floor type, and suction settings. Hard floors in standard mode achieve the longest runtime. High-pile carpet and max suction mode reduce runtime. The original OEM ABL-D1 battery is approximately 1800mAh (26Wh), so this 26Wh upgrade provides roughly 40 percent more cleaning time per charge.
Q: How do I know when my Roomba battery needs replacing?
A: Common signs your Roomba battery needs replacement include: runtime drops noticeably shorter than when new, the robot repeatedly fails to return to the dock before dying, the battery charges to full in under 30 minutes, the iRobot HOME app shows persistent battery errors, or the Roomba starts a cleaning cycle and shuts down shortly after. iRobot rates the original battery for approximately 500 charge cycles or 2 to 3 years of regular use before capacity degrades below 80 percent.
Q: How do I replace the battery in my iRobot Roomba?

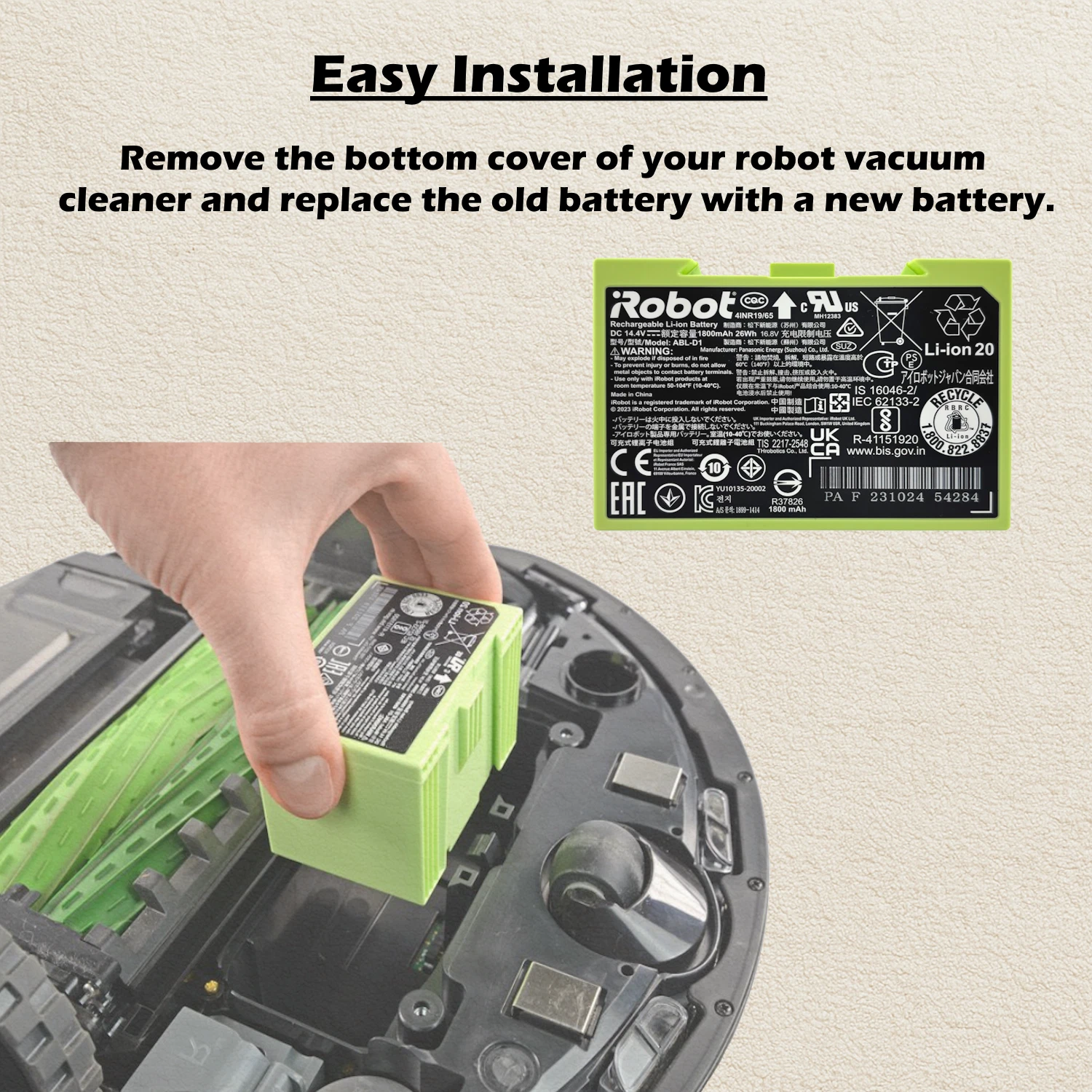

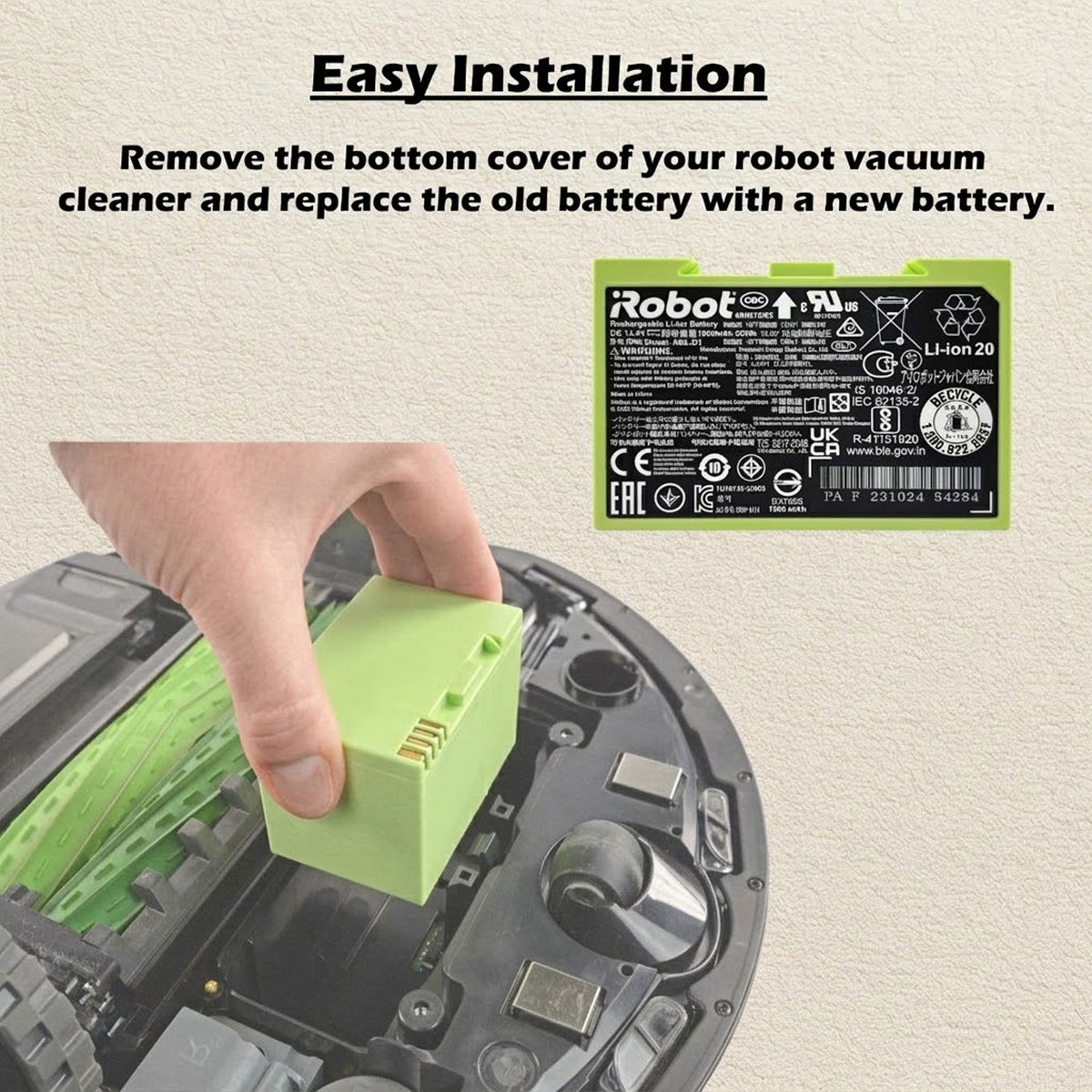

A: Replacing the ABL-D1 battery takes about 5 minutes with a Phillips-head screwdriver. Turn the Roomba off and flip it upside down. Remove the edge-sweeping brush by unscrewing its single captive screw. Remove the five screws on the bottom plate and lift it off. Unclip the old battery by bending the plastic latch, lift it out, and disconnect the plug. Connect the new ABL-D1 battery, press it into the compartment until it clicks, then reassemble the bottom plate and side brush. If the Roomba does not power on after installation, place it on the charging dock for about 20 seconds to initialize.
Q: What is the difference between ABL-D1, ABL-D2, and ABL-F batteries?
A: All three are physically and electrically interchangeable with the same 14.4V output. ABL-D1 (code 4INR19/65) is the earliest part number, with original OEM capacity around 1800mAh. ABL-D2 (code 4INR19/66) is a minor revision, typically 2210mAh OEM. ABL-F (code 4INR19/66-2) is the newest designation, usually found as high-capacity upgrades (4460mAh and above). All three fit the same Roomba i Series, e Series, and J Series models. The ABL-D1 at 26Wh offers a strong mid-range value — more runtime than stock OEM at a budget-friendly price.
Q: Which Roomba models are NOT compatible with this ABL-D1 battery?
A: This ABL-D1 battery fits Roomba i Series (i1 through i8), e Series (e5, e6), and J Series (J5, J6, J7). It is NOT compatible with newer Roomba Combo models with mopping (j9 Combo, j7 Combo, j5 Combo), Roomba s9/s9+ series, Roomba 900 series, Roomba 800/700/600/500 series, or Braava mopping robots. Always check your Roomba model number on the label underneath the robot before ordering.
Q: How long does it take to fully charge the ABL-D1 battery?
A: A full charge takes approximately 2 to 3 hours using the original iRobot charging dock or Clean Base. Charge the new ABL-D1 battery fully before first use to calibrate the battery meter in the iRobot HOME app and achieve maximum initial runtime. If the robot does not power on immediately after battery installation, place it directly on the charging dock for about 20 seconds to initialize the connection.
Q: Is this ABL-D1 battery protected against overcharging and overheating?
A: Yes. This ABL-D1 battery includes a built-in Intelligent Protection Circuit (IPC) that continuously monitors and guards against overcharging, over-discharging, short circuits, and overheating. The premium Li-Ion cells and IPC work together to ensure safe, stable operation for your home and long-term reliability for your Roomba. The battery also supports the iRobot HOME app's battery health tracking and charging optimization features.
What's Included
- 1 x ABL-D1 High-Capacity Lithium-Ion Battery for iRobot Roomba (14.4V, 26Wh)
- 1 x Installation Guide
Summary
| Battery Model | ABL-D1 (4INR19/65) |
| Voltage | 14.4V |
| Capacity | 26Wh (approx. 2500mAh) |
| Battery Type | Lithium-Ion (Li-Ion) |
| Protection | Intelligent Protection Circuit (IPC) — overcharge, over-discharge, short-circuit, overheat |
| Compatible With | Roomba i1, i2, i3, i4, i6, i7, i8; e5, e6; J5, J6, J7 and all Plus (+) / Clean Base variants |
| Runtime vs OEM | Approximately 40% more than stock 26Wh OEM battery |
