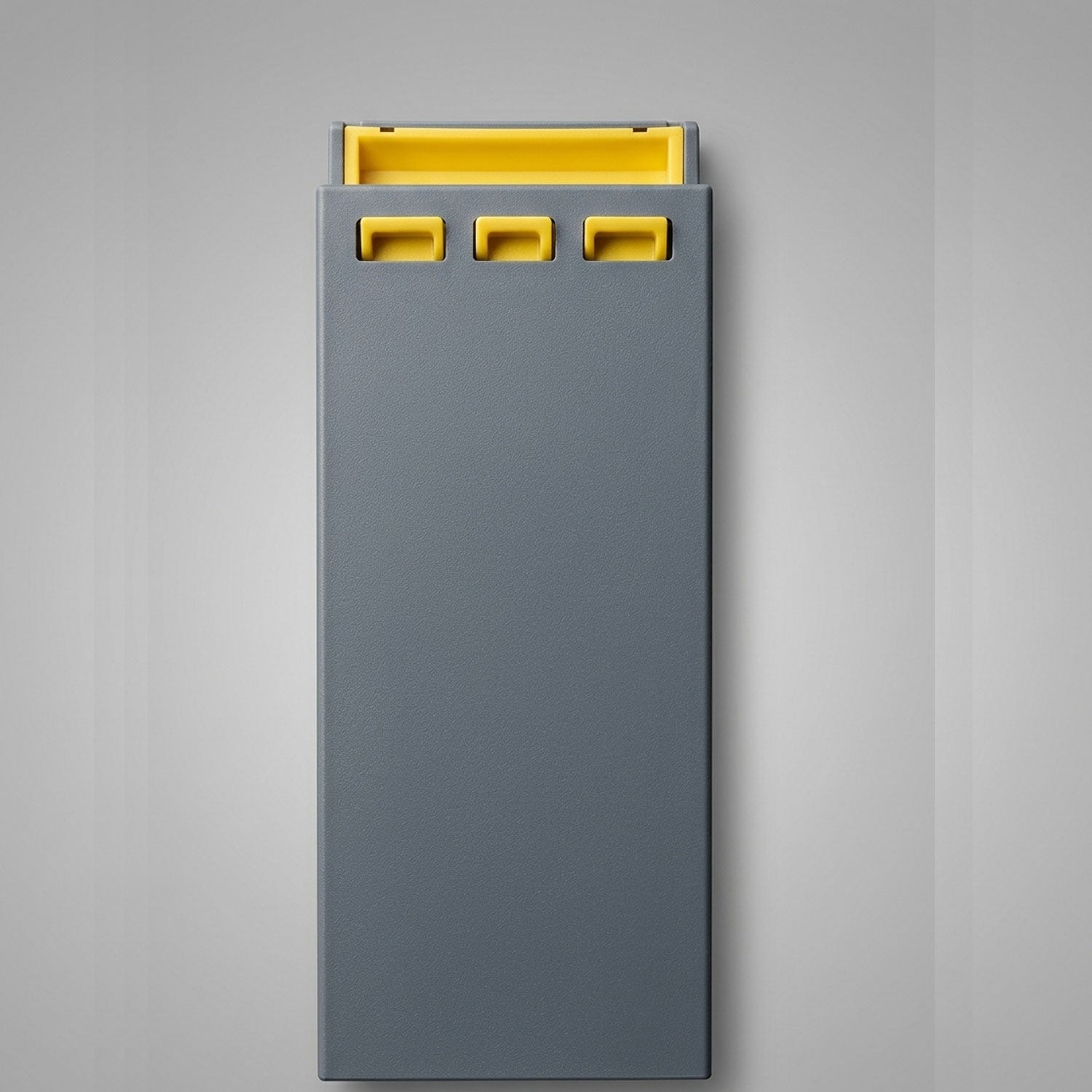

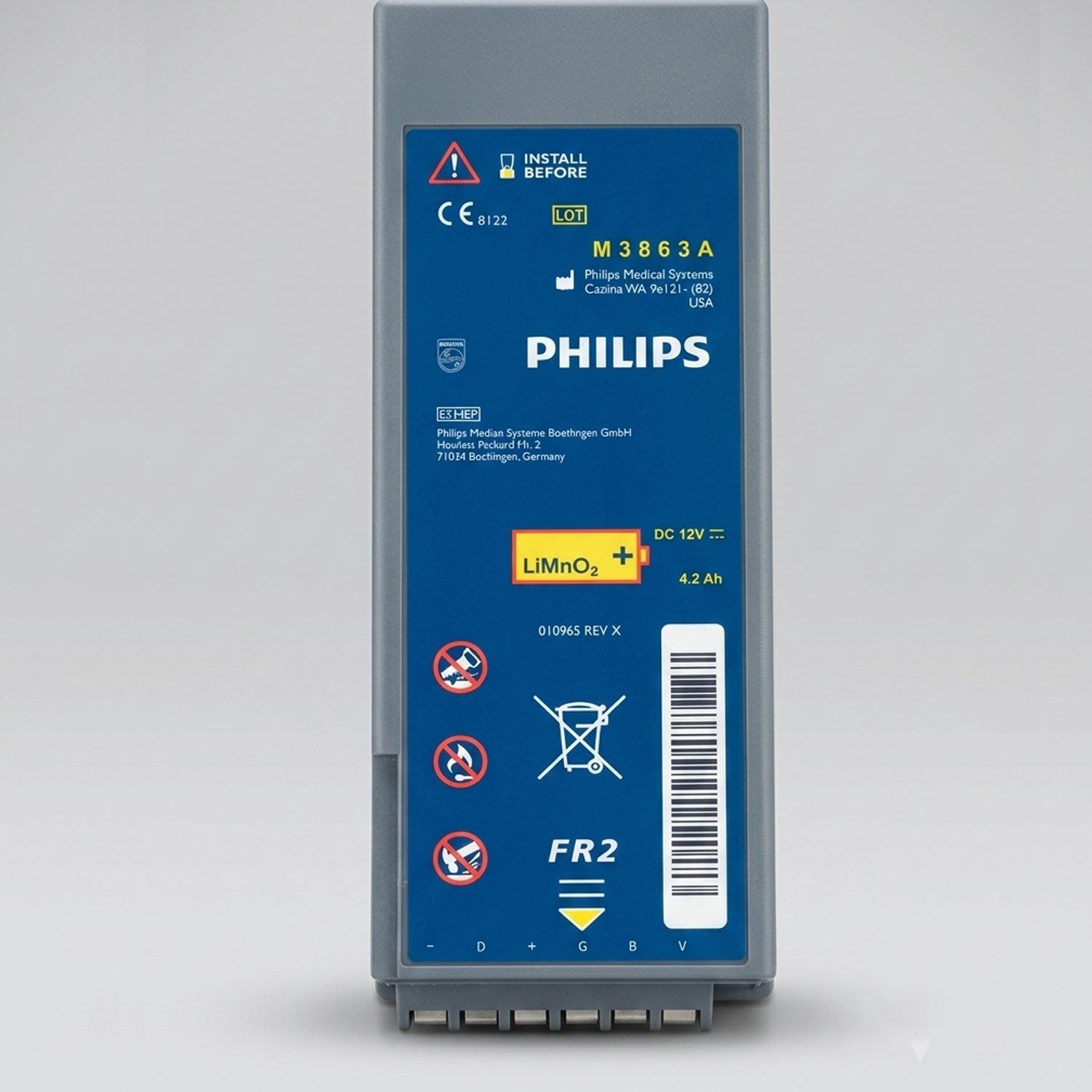

M3863A Battery For Philip FR2 FR2+ M3840A, M3860A,M3861A

Q: How long does the M3863A battery last in storage and in the AED?

A: Uninstalled shelf life: up to 5 years from manufacture date when stored at 59-77°F (15-25°C) in original packaging. Installed standby life: 3-5 years under normal room-temperature conditions. After 4 years in the device with no use, approximately 35% capacity remains — still functional but replacement is recommended. Operational capacity: up to 300 shocks or 12 hours of continuous "ON" time once activated. Always check the AED status indicator — a flashing red X means the battery needs replacement soon.

Q: Are M3863A, M3860A, M3840A, and M3861A interchangeable?

A: Yes — 100% interchangeable. All 6 part numbers (M3863A, M3863A-146144, M3860A, M3861A, M3840A, M3841A) are the same battery: 12V, 4200mAh Li-MnO₂, non-rechargeable. The different numbers simply indicate which specific FR2/FR2+ model they were originally paired with. The M3863A is the universal replacement that covers all FR2/FR2+ devices. If your original battery label shows any of these numbers, this M3863A fits.

Q: Can the M3863A battery be recharged?

A: No. This is a non-rechargeable, single-use battery. Do NOT attempt to recharge it. The lithium manganese dioxide (Li-MnO₂) chemistry is not designed for recharging — attempting to do so may cause overheating, leakage, fire, or explosion. When the battery is depleted (solid red X on the AED status indicator), dispose of it properly and install a new M3863A. This is a disposable medical device battery — it is replaced, not recharged.

Q: How many shocks can the M3863A deliver?

A: The M3863A is rated for a minimum of 300 shocks at maximum energy, or up to 12 hours of continuous "ON" time (monitoring and analyzing, with or without shocks). In practice, this covers the vast majority of cardiac arrest resuscitation scenarios — most require far fewer than 300 shocks. For public-access AED programs, this capacity ensures the device is ready for multiple incidents between battery changes.

Q: Which AED models are NOT compatible with the M3863A?

A: This battery is exclusively for the Philips HeartStart FR2 and FR2+ (FR2 Plus). It does NOT fit the HeartStart FR3, FRx, HS1/OnSite, Home, or the newer HeartStart FR3/FRx generations. It also does not fit AEDs from other manufacturers — ZOLL, Physio-Control/LifePak, Cardiac Science, Defibtech, etc. Always verify your AED model says "HeartStart FR2" or "FR2+" on the device label.

Q: When should I replace the M3863A in my AED?

A: Replace the battery:

1) Immediately when the AED status indicator shows a solid red X — battery is depleted.

2) Soon when it shows a flashing red X — battery is low.

3) After any use where shocks were delivered — even if capacity remains, protocol is to install a fresh battery.

4) By the install-by date on the label (2030-12) regardless of status.

5) If the battery has been stored at extreme temperatures. Keep a spare battery with every AED at all times.

Q: How should I store the M3863A battery?

A: Store in the original packaging at 59-77°F (15-25°C) — avoid extreme heat, cold, or humidity. Do not store in direct sunlight, vehicles, or unheated storage rooms. Keep the battery dry. For AED program managers: rotate stock based on manufacture date — use oldest batteries first. Inspect spare batteries annually for physical damage or swelling. Dispose of expired or damaged batteries through an approved lithium battery recycling program.
