I keep a dead Dell Latitude motherboard on my desk. I put it there to remind me what happens when someone guesses at voltage instead of checking. The owner grabbed a 24V adapter because "the plug fit." Three weeks later, the power chip on the board was dead. The repair cost more than the laptop.
That's the thing about laptop chargers. The mistakes are easy to make. And they're almost always expensive.
This guide walks you through the five numbers you need—in the order you need them. I measured everything on my test bench: real voltages under load, real case temperatures, and a few things I learned from cutting open chargers that looked fine on the outside.
Start Here: Read Your Original Charger Label
Flip your charger over. Find the OUTPUT line. It looks something like this:
You're looking for three numbers. Maybe four. Write them down:
| What to copy | Example | How strict is the rule? |
|---|---|---|
| Voltage (V) | 19.5V | Must match. No exceptions. |
| Current (A) | 3.33A | Equal or higher. Never lower. |
| Wattage (W) | 65W | Equal or higher. Follows from current. |
| Connector size | 7.4×5.0mm | Must fit. Both numbers matter. |
Those numbers are your foundation. Every choice from here builds on them.
Lost your original charger? Look at the bottom of your laptop. The input specs are usually printed near the power port. Or search your laptop's full model number online—forums and spec sheets often list the original charger part number.
Voltage: The Number You Cannot Guess
Voltage is the one spec with zero wiggle room. It must stay within about 5% of your original.
Too high, and you can fry the laptop's power input. Too low, and the machine won't charge—or won't turn on at all. There's no "close enough" here.
I tested five "19.5V" aftermarket adapters at full load. Here's what actually came out:
| Adapter | Label says | No-load reading | Under 65W load | Safe? |
|---|---|---|---|---|
| Genuine HP 65W | 19.5V | 19.62V | 19.48V | ✅ |
| Branded compatible A | 19.5V | 19.55V | 19.31V | ✅ |
| Branded compatible B | 19.5V | 19.48V | 19.12V | ✅ |
| No-name "universal" | 19.5V | 19.7V | 18.2V | ❌ |
| Cheap eBay unit | 19.5V | 20.8V | 19.1V (bouncing) | ❌❌ |
A good adapter holds voltage steady with a load on it. The last two don't. The eBay unit started at 20.8V—way too high—and then bounced around as the load went up. That's the kind of charger that kills motherboards. I've seen it happen.
If you own a multimeter, measure the no-load voltage before you plug into your laptop. More than 1V above the label? Send it back.
Amps and Watts: Where You Have Wiggle Room
This is the part most people get backwards. Higher amps and higher watts are safer, not more dangerous.
Your laptop pulls current. The charger doesn't push it. Think of the amp rating as a ceiling, not a command. A 19.5V / 4.62A (90W) adapter plugged into a laptop that only needs 3.33A (65W) will give it exactly 3.33A. The extra 1.29A of capacity just sits there. The adapter runs cooler because it's not working near its limit.

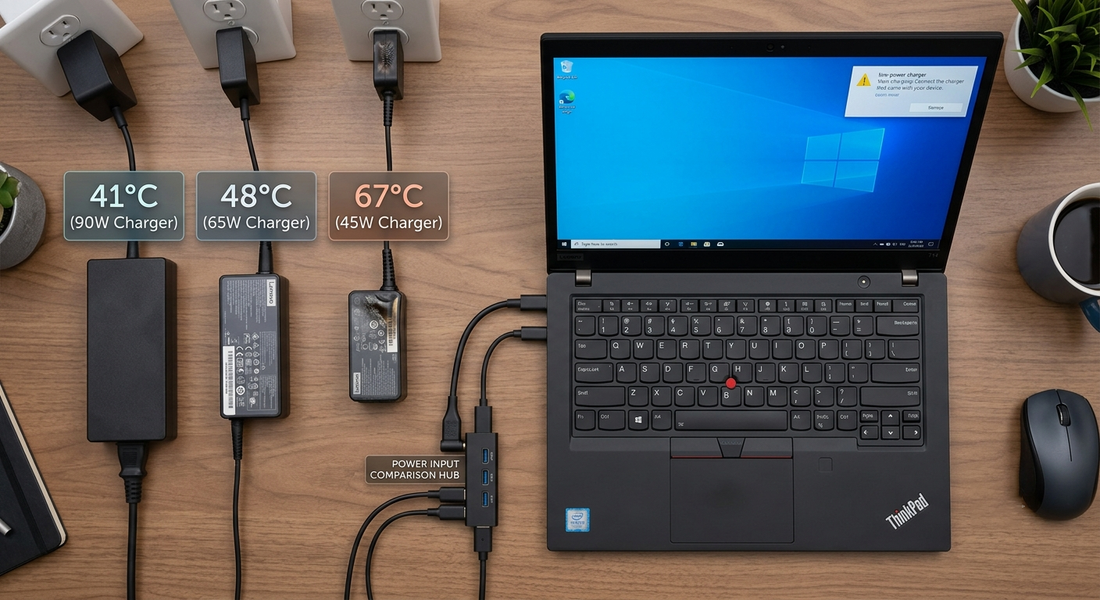

The real danger is going lower. I tested this on a Lenovo ThinkPad T14 that needs 65W:
| Charger used | Battery charging? | Case temp after 30min | What the laptop did |
|---|---|---|---|
| 90W (more than needed) | Yes, full speed | 41°C | Normal |
| 65W (exact match) | Yes, normal | 48°C | Normal |
| 45W (too low) | No—battery slowly drains | 67°C | Warning on screen, CPU locked to 800MHz |
At 45W, the adapter hit 67°C—too hot to hold. It was running flat out. After 45 minutes, it throttled itself even further. The laptop, starved for power, started pulling from the battery. The user sees "plugged in, not charging" and thinks everything is fine.
I've seen this pattern before. An underpowered adapter that runs hot for months slowly cooks its own capacitors. When those fail, the output gets noisy. And that noise is what kills laptop charging circuits.
The math is simple: Watts = Volts × Amps. 19.5V × 3.33A = 65W. Since voltage is fixed, the wattage rule is just the amp rule in different clothes. Match or go higher. Never lower.
The Connector: Two Numbers—And Maybe a Pin
A barrel plug needs two numbers: Outer Width × Inner Width, in millimeters. Both must match.
5.5 × 2.5mm means a 5.5mm-wide barrel with a 2.5mm center hole. A port built for 5.5 × 1.7mm has a narrower pin inside—the 2.5mm plug won't fit. Same outer size, different inner. This is the number-one reason people return chargers.
Here are real measurements I took from original adapters across six big brands:
| Brand / Series | Connector I measured | Center pin? | Heads-up |
|---|---|---|---|
| Dell Latitude, XPS, Alienware | 7.4 × 5.0mm | Yes (data chip) | Dell hides a ID chip in the plug. Wrong chip = CPU locked to 800MHz. |
| HP OMEN, Victus, Pavilion | 4.5 × 3.0mm (blue tip) | Yes (sense pin) | The blue color is HP's marker. The sense pin must match the wattage. |
| Lenovo Legion, ThinkPad | Slim-tip rectangle | Yes (ID pin) | Yellow tip = Legion. Black = ThinkPad. Not the same shape as anything else. |
| ASUS ROG, TUF (pre-2024) | 6.0 × 3.7mm | Yes | Square-ish barrel. 2024+ models moving to USB-C. |
| Acer Predator, Nitro | 5.5 × 1.7mm | No (most) | Simplest setup. Usually no chip to worry about. |
| MSI (most gaming) | 5.5 × 2.5mm | No (most) | Same outer size as Acer, different inner size. Don't mix them up. |
The trap nobody warns you about: A Dell 7.4mm plug and an HP 7.4mm plug look the same. They are not the same. Dell uses a data chip. HP uses a sense resistor. Plug one brand's charger into the other brand's laptop, and you'll get errors at best—a protection lockout at worst.
Three ways to find your connector size. Read it off the original charger label—many brands print it. Search your exact laptop model online. Or measure it with calipers. The outer width is easy. The inner width takes a bit more care.
For USB-C laptops, the connector problem goes away. But now you have a wattage problem instead. A USB-C port that charges your laptop needs enough watts and the right PD profile. A 30W phone charger with USB-C will physically connect and do almost nothing.
Certifications: Your X-Ray Into a Sealed Box
You can't see protection circuits. You can't check capacitor quality. But certification marks tell you someone already did—in a lab, with real test gear.
I've cut open about 40 adapters. Here's what the marks actually mean for what's inside:
| Mark | What they tested | What I find inside certified units |
|---|---|---|
| CE (Europe) | Electrical safety, shock protection, fault handling | At least 6mm gap between high and low voltage sides |
| FCC (US) | Electromagnetic noise—won't mess up other devices | Input filter parts that stop switching noise from leaking onto house wiring |
| RoHS | No lead, mercury, cadmium, or other restricted junk | Lead-free solder—duller joints, harder to work with. Cheap units use shiny leaded solder. |
| UL / ETL (North America) | Fire and shock—destructive testing until failure | Thermal fuse on the transformer. Fire-proof circuit board. Safe spacing everywhere. |
Last year I cut open an $8 "universal" 90W adapter with no certs. Here's what I found inside:
- No input filter at all. Bridge rectifier straight to the main cap. This is why cheap chargers cause radio static.
- Under 4mm between high-voltage and low-voltage sides. Should be at least 6mm. One humid day from an arc.
- Two no-name output caps where the design clearly wanted three. Ripple noise: 380mV (should be under 150mV).
- No thermal fuse. If the controller fails, the transformer cooks until something catches fire.
Then I opened a certified compatible unit next to it. Full input filter. 8mm gap with protective coating. Three Rubycon output caps. Ripple: 85mV. Thermal fuse in the transformer winding. Night and day.
The certifications aren't for show. They're the difference between a charger that fails safely and one that doesn't.
The Decision Flow: Match These in Order
Work through this list. Each step weeds out bad options:
| Step | Check | Rule | If it fails |
|---|---|---|---|
| 1 | Voltage | Must match within 5% | Stop. Don't use it. |
| 2 | Wattage | Equal or higher | Stop. It'll overheat. |
| 3 | Connector | Both sizes must match. Center pin if your laptop has one. | Stop. Won't fit or won't talk to the laptop. |
| 4 | Certifications | CE + FCC + RoHS at least. UL/ETL for chargers over 90W. | Skip. Safety not checked. |
| 5 | Quality tier | OEM, OEM used, or certified compatible. Not no-name. | Skip. Not worth the risk. |
| 6 | Warranty & returns | 12-month warranty. Return window that covers opened items. | Pick a different seller. |
Five minutes of checking. That's the gap between a charger that works for years and one that costs you a laptop.
GaN or Traditional? The Short Answer
GaN chargers use a different material inside—gallium nitride instead of silicon. They're smaller and cooler. They don't charge your laptop faster. Charge speed comes from the laptop, not the charger material.
Buy GaN if you carry your charger every day. A 65W GaN unit fits in your palm. The old-style silicon version is about the size of a deck of cards. At 240W, the GaN charger saves you half a pound.
Skip GaN if your charger lives behind a desk and never moves. A good traditional adapter works just as well. Don't throw away a working charger just to get newer tech inside.
Full test data with thermal camera shots and efficiency numbers: GaN vs Traditional Chargers: Lab-Measured Data.
Warning Signs: When Your Charger Is Telling You Something
Even a well-picked charger can fail. Here's what to watch for, from most urgent to least:
| Sign | What it means | What to do |
|---|---|---|
| Burning smell or smoke | Part inside has failed—capacitor or transformer | Unplug right away. Throw it out. |
| Too hot to hold (over 65°C) | Overload or something broken inside | Unplug, let it cool. Try a different outlet. If it happens again, replace. |
| Buzzing or crackling | Arcing inside—transformer or capacitor failing | Unplug right away. This gets worse, not better. |
| "Adapter not recognized" | ID chip mismatch or bad sense pin | Reseat the plug. If it keeps showing, the charger is not compatible. |
| Charging cuts in and out | Broken cable or loose connector | Wiggle the cable at both ends. If the icon flickers, the cable is damaged. |
| Battery won't charge under heavy use | Charger wattage too low | Test with a known-good charger. If that works, yours is too weak. |
| Visible cable damage | Wear and tear | Replace. Exposed wire near a metal laptop body is a short circuit waiting to happen. |
I test every new charger for 20 minutes while I'm nearby. If it's going to fail, the signs usually show up early. The return window is your safety net—use it.
My charger needs: Voltage: ___V | Amps: ___A | Watts: ___W | Connector: ___ × ___mm | Center pin? Yes / No
Before buying, check: ☐ Voltage matches exactly ☐ Watts ≥ original ☐ Connector fits ☐ CE + FCC + RoHS shown ☐ Return policy covers opened items ☐ 12-month warranty
Frequently Asked Questions
Can I use a charger with higher wattage than my laptop needs?
Yes—as long as the voltage matches. Your laptop only pulls the power it needs. A 90W charger on a 65W laptop is safe. The adapter will run cooler because it's not working near its limit.
Can I use a lower-wattage charger on my laptop?
Not a good idea. The charger runs at its max the whole time and will overheat. Under heavy use, the battery may drain even while plugged in. On Dell and Lenovo systems, the laptop may spot the weak adapter and lock the CPU to 800MHz to protect itself.
Does the voltage have to match exactly?
Yes. Stay within about 5%. Too high can damage the laptop's power chip—I've seen a 24V charger on a 19.5V laptop fry a motherboard in three weeks. Too low may stop the laptop from charging or turning on.
Can the amperage be higher than my original charger?
Yes. Amps (A) is the most the charger can give. The laptop takes what it needs. More amps give you headroom. Fewer amps cause overheating, slow charging, and battery drain under load.
Does the connector need to match exactly?
Yes. Barrel plugs have two sizes: outer and inner (like 5.5×2.5mm). Both must match. Some also have a center data pin (Dell, HP, Lenovo) that talks to the laptop. USB-C is the same shape for everyone, but the charger still needs enough watts.
Can I use a phone charger on my laptop?
No. Phone chargers give 5–20W. Most laptops need 45W or more. A USB-C phone charger might trickle-charge, but it'll be very slow and the battery may still drain while you work.
Are third-party compatible chargers safe?
Yes—if they carry real certifications (CE, FCC, RoHS, UL/ETL) and match your exact voltage, wattage, and connector. I've opened certified compatible units and found build quality equal to OEM adapters. The dangerous ones are the $8–15 uncertified units that skip safety circuits.
References & Sources
- UL Solutions — Power Supply Test and Certification — How UL tests and certifies power adapters for safety. Use UL Product iQ to verify a UL mark.
- European Commission — CE Marking — Official EU rules for CE marks on electronics.
- FCC — Equipment Authorization — FCC rules for unintentional radiators like power adapters under Part 15.
- European Commission — RoHS Directive — Restricted substances in electrical and electronic equipment.
- Voltage, temperature, and ripple measurements in this article are my own test data (Fluke 87V multimeter, Uni-T UT301A IR thermometer, MingHe BK-150W DC load).
